Review LEEYEE surge protective device certificates by product series, voltage rating, covered models, standard and report number. This page helps buyers confirm which certificate applies to PV DC SPD and AC SPD models before purchasing, project filing or OEM documentation.
For surge protective devices, a certificate is useful only when the product series, voltage rating, protection type and model structure match the certificate scope. This is especially important for PV DC SPD models, because 600V, 1000V and 1500V products may have different certificate scopes.
A PV 600V DC SPD certificate does not automatically cover 1000V or 1500V PV SPD models. A certificate for LY1-C40PV/2S and LY1-C40PV/2 should not be used as proof for LY1-C40PV/3S or other pole configurations unless the certificate scope confirms it.
Use this matrix as a quick guide. Before using any document for project approval, catalog listing or OEM marking, please confirm the latest certificate copy and exact model scope with LEEYEE.
| Série de produits | Covered Models | Application | Standard | Main Certified Ratings | Certificate / Report Reference |
|---|---|---|---|---|---|
| PV 600V DC SPD | LY1-C40PV/2S, LY1-C40PV/2 | Solar PV DC-side surge protection | EN 61643-31:2019 IEC 61643-31:2018 | Ucpv 600V DC, PV Type 1 + Type 2, In 20kA, Imax 40kA, Iimp 6.25kA, Up 2.2kV, Iscpv 10A | TÜV R 50539472 0001 CE AN 50539473 0001 Test Report CN22QXXW 001 TÜV PDF / CE PDF |
| PV 1000V DC SPD | LY1-C40PV | Solar PV DC-side surge protection | EN 61643-31:2019 IEC 61643-31:2018 | Ucpv 1000V DC, PV Type 1 + Type 2, In 20kA, Imax 40kA, Iimp 6.25kA, Up 3.6kV, Iscpv 10A | TÜV R 50532288 0001 CE AN 50532289 0001 CB HU-003767 Test Report CN22Z41T 001 TÜV PDF / CE PDF / CB PDF |
| PV 1500V DC SPD | LY1-C40PV/3S, LY1-C40PV/3 | Solar PV DC-side surge protection | EN 61643-31:2019 IEC 61643-31:2018 | Ucpv 1500V DC, PV Type 1 + Type 2, In 20kA, Imax 40kA, Iimp 6.25kA, Up 5.6kV, Iscpv 10A | TÜV R 50539515 0001 CE AN 50539518 0001 Test Report CN212E6Y 001 TÜV PDF / CE PDF |
| AC Type 2 Modular SPD – LY1-C40M Series | LY1-C40M/1+1, LY1-C40M/3+1, LY1-C40M/2, LY1-C40M/4 | Low-voltage AC modular surge protection for TT and TN systems | EN 61643-11:2012+A11 IEC 61643-11:2011 | Type 2 / Class II, Uc 275VAC (L-N) / 255VAC (N-PE) or 275VAC (L/N-PE), In 20kA, Imax 40kA, Up 1.5kV / 1.2kV by mode, Isccr 25kA, IP20, indoor | TÜV R 50602134 0001 CE AN 50602164 0001 CB HU-004585 Reports CN23XBIV 001 / CN23FALU 001 TÜV PDF / CE PDF / CB PDF |
| AC Type 2 SPD – LY1-C40 / LY1-D20 Series | LY1-C40/1+1, /1S+1, /3+1, /3S+1, /1, /1S, /3, /3S, /4, /4S LY1-D20/1+1, /1S+1, /3+1, /3S+1, /1, /1S, /3, /3S, /4, /4S | Low-voltage AC power distribution | EN 61643-11:2012+A11 IEC 61643-11:2011 | Type 2 / Class II, Uc 275VAC (L-N/PE) / 255VAC (N-PE), In 20kA, Imax 40kA, Up 1.5kV, Isccr 25kA, IP20, indoor | TÜV R 50488349 CB HU-003272 Reports CN20PX06 / CN21VWP9 001 TÜV PDF / CB PDF |
| AC Type 1+2 SPD – LY1-12.5 / LY1-7 Series | LY1-12.5/1+1, /1S+1, /3+1, /3S+1, /1, /1S, /3, /3S, /4, /4S LY1-7/1+1, /1S+1, /3+1, /3S+1, /1, /1S, /3, /3S, /4, /4S | Low-voltage AC power distribution where Type 1 + Type 2 performance is required | EN 61643-11:2012+A11 IEC 61643-11:2011 | Type 1 + Type 2 / Class I + II, Uc 275VAC (L-N/PE) / 255VAC (N-PE), In 20kA, Imax 50kA, Iimp by exact model and pole configuration, Up 1.5kV, Isccr 25kA, IP20, indoor | TÜV R 50488029 CB HU-003305 Reports CN200WR1 / CN21XE20 001 TÜV PDF / CB PDF |
After checking the certificate scope, buyers can review matched PV DC SPD datasheets, user manual, product label references and packaging information in the Technical Downloads page.
PV DC SPD certificates should be checked by voltage level and exact model. The following summaries help buyers quickly understand which document applies to each PV SPD group.
For LY1-C40PV/2S and LY1-C40PV/2 photovoltaic surge protective devices. The /2S version includes remote signalling contact. The /2 version is supplied without remote signalling contact.
For LY1-C40PV photovoltaic surge protective devices used in 1000V DC PV-side protection applications. This group has TÜV, CE and CB certificate documents.
For LY1-C40PV/3S and LY1-C40PV/3 photovoltaic surge protective devices used in 1500V DC PV applications.
AC SPD certificates are grouped by exact product series. LY1-C40M, LY1-C40 / LY1-D20, and LY1-12.5 / LY1-7 should not be mixed when presenting certificate scope.
This certificate group applies to LY1-C40M modular Type 2 SPDs, including 1+1, 3+1, 2P and 4P structures.
This certificate group applies to selected LY1-C40 and LY1-D20 Type 2 AC SPD configurations used in low-voltage distribution systems.
This certificate group applies to selected LY1-12.5 and LY1-7 Type 1+2 AC SPD configurations. Iimp should be confirmed by exact model and pole configuration.
| Model / Series | Type de DOCUP | Covered Certificate Documents | Use Note |
|---|---|---|---|
| LY1-C40M/1+1 LY1-C40M/3+1 LY1-C40M/2 LY1-C40M/4 | AC Type 2 Modular SPD | TÜV R 50602134 0001 CE AN 50602164 0001 CB HU-004585 | Use the LY1-C40M certificate group only. Do not mix with LY1-C40 / LY1-D20 certificates. |
| Série LY1-C40 1+1, 1S+1, 3+1, 3S+1, 1, 1S, 3, 3S, 4, 4S LY1-D20 Series 1+1, 1S+1, 3+1, 3S+1, 1, 1S, 3, 3S, 4, 4S | Type AC 2 SPD | TÜV R 50488349 CB HU-003272 | Use this group for Type 2 LY1-C40 / LY1-D20 models. Do not present the whole series as Type 1+2 without checking exact model markings. |
| Série LY1-12.5 1+1, 1S+1, 3+1, 3S+1, 1, 1S, 3, 3S, 4, 4S LY1-7 Series 1+1, 1S+1, 3+1, 3S+1, 1, 1S, 3, 3S, 4, 4S | AC Type 1+2 SPD | TÜV R 50488029 CB HU-003305 | Iimp should be confirmed by exact model and pole configuration before project filing or OEM documentation. |
A professional certificate page should clearly explain the boundary of each document. This helps buyers avoid using the wrong certificate for the wrong model.
When the model, rating and product structure are covered, certificates can support buyer review, supplier approval, project documentation, catalog listing and OEM discussion.
A certificate for one voltage level or model structure should not be used to represent another series unless the certificate scope confirms it.
Certificate previews are provided for buyer pre-review. For project filing, tender submission, OEM marking or regulated market approval, please request the latest certificate copy and confirm the applicable model scope before use.
Use the gallery for a quick preview. Click “Open PDF” to view the available certificate copy. For exact model scope, latest valid version or full test report, please send the product model and project requirement to LEEYEE.
TÜV certificate for LY1-C40PV/2S and LY1-C40PV/2 photovoltaic surge protective devices, tested to EN / IEC 61643-31.
CE / LVD certificate for 600V DC photovoltaic SPD models LY1-C40PV/2S and LY1-C40PV/2.
TÜV certificate for LY1-C40PV 1000V DC photovoltaic surge protective device applications.
CE / LVD certificate for LY1-C40PV 1000V DC photovoltaic surge protective device applications.
CB certificate for LY1-C40PV 1000V DC photovoltaic surge protective device applications.
TÜV certificate for LY1-C40PV/3S and LY1-C40PV/3 1500V DC photovoltaic surge protective devices.
CE / LVD certificate for LY1-C40PV/3S and LY1-C40PV/3 1500V DC photovoltaic surge protective devices.

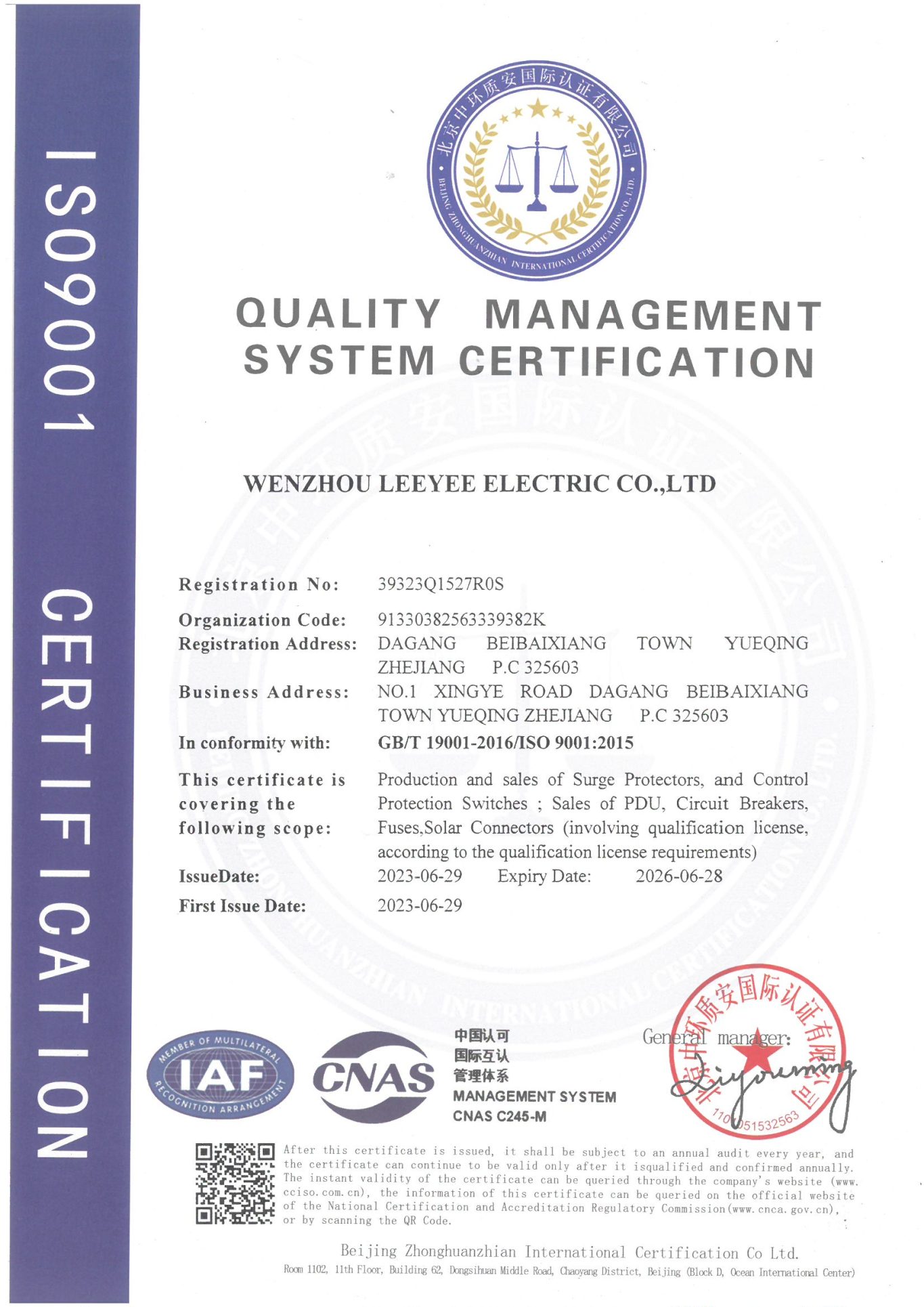

Quality-system documentation supporting supplier review and stable production evaluation.

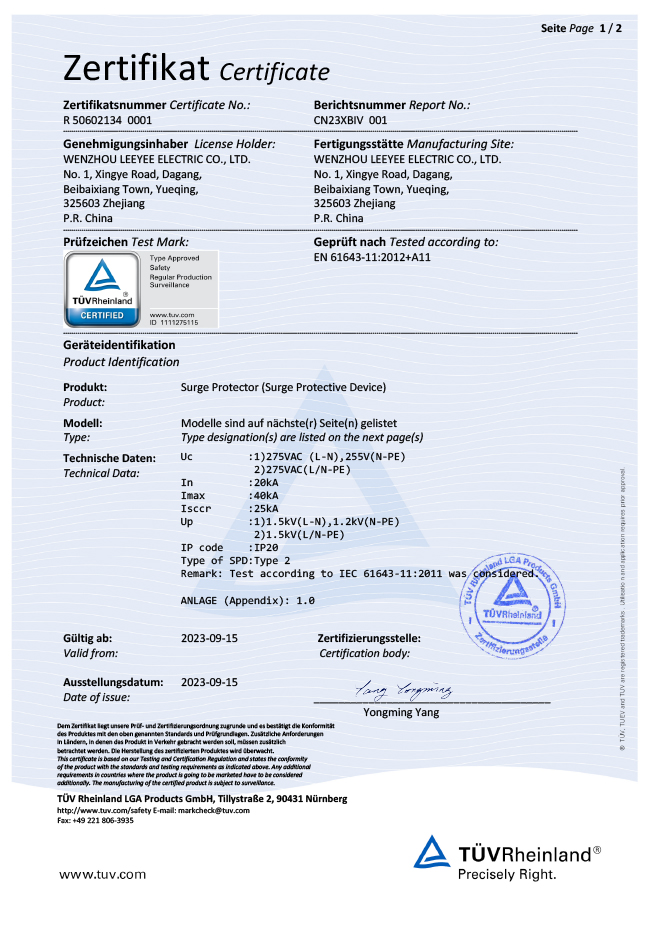

TÜV certificate for LY1-C40M/1+1, LY1-C40M/3+1, LY1-C40M/2 and LY1-C40M/4 Type 2 modular AC SPDs.

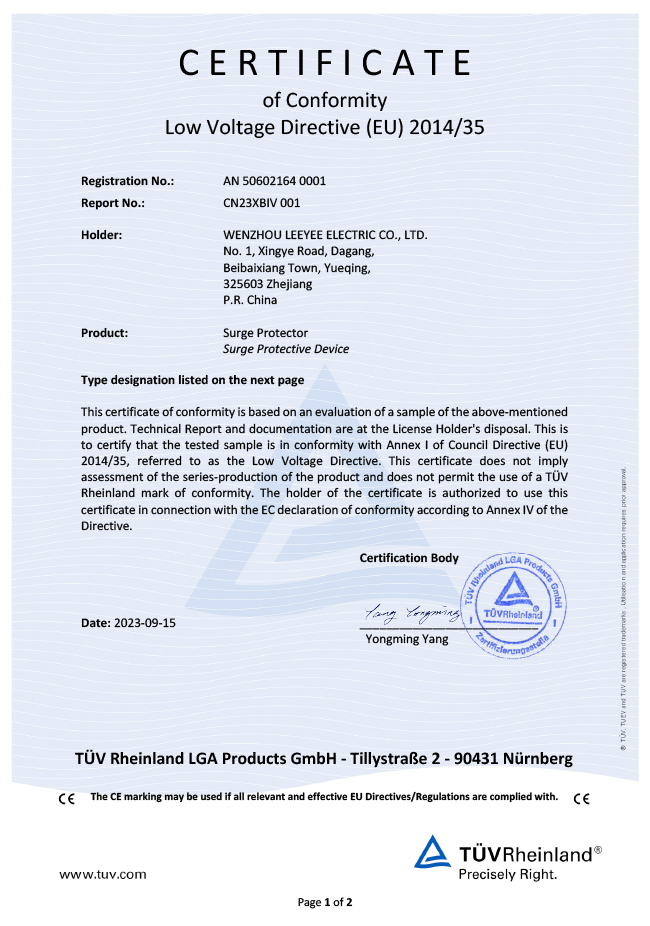

CE / LVD certificate for selected LY1-C40M Type 2 modular surge protective devices.

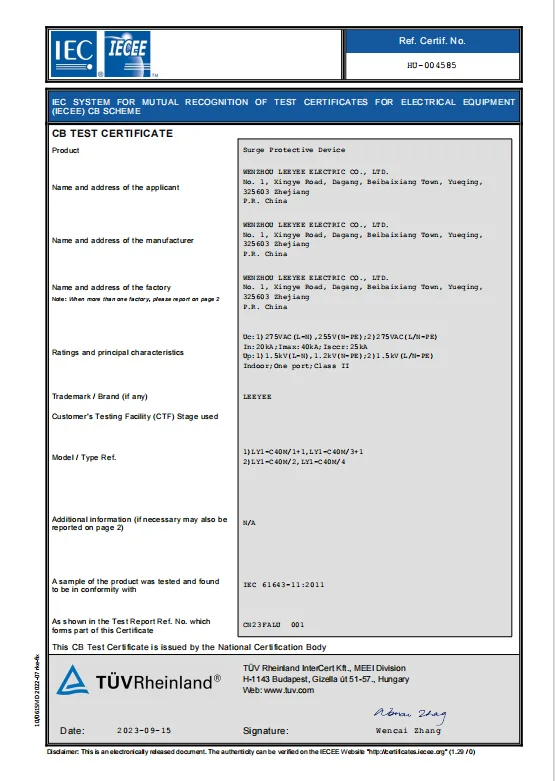

CB certificate for LY1-C40M/1+1, LY1-C40M/3+1, LY1-C40M/2 and LY1-C40M/4 under IEC 61643-11.

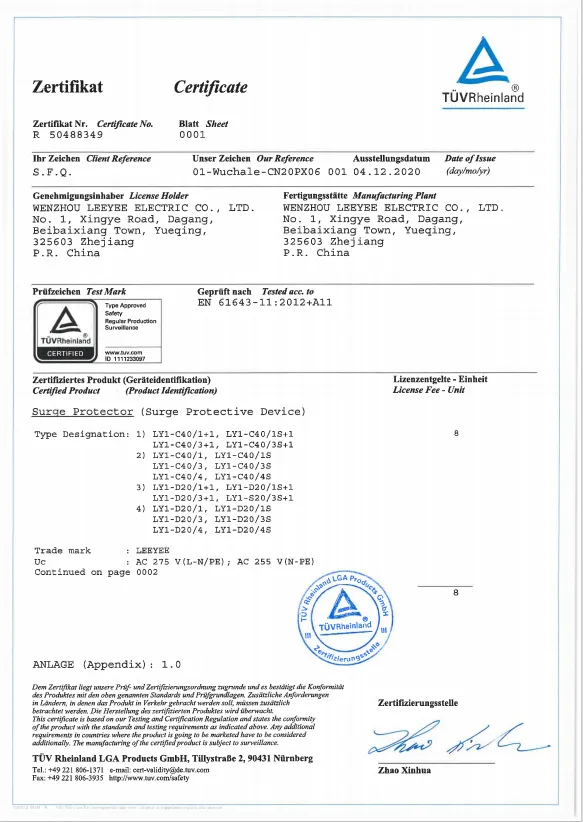

TÜV certificate for selected LY1-C40 and LY1-D20 Type 2 AC SPD models.

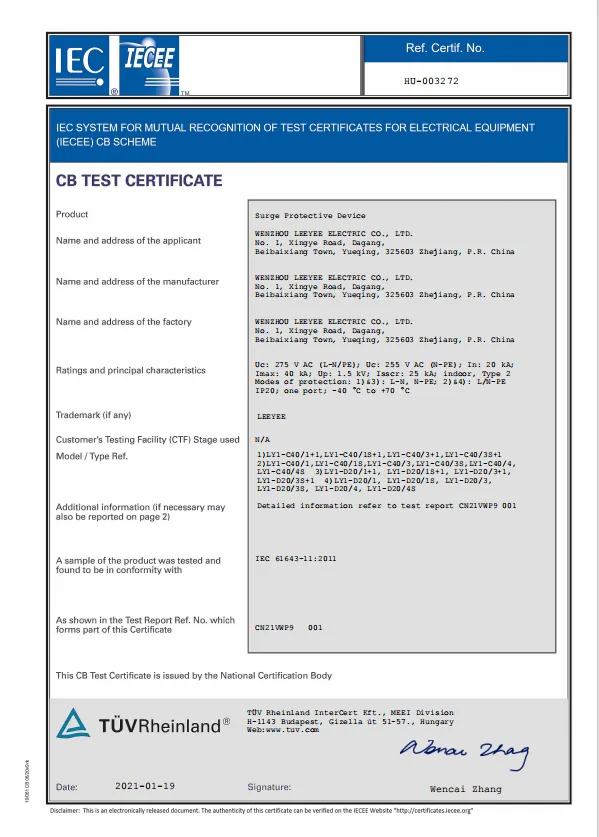

CB certificate for selected LY1-C40 and LY1-D20 Type 2 AC SPD models under IEC 61643-11.
TÜV certificate for selected LY1-12.5 and LY1-7 Type 1+2 AC SPD models.

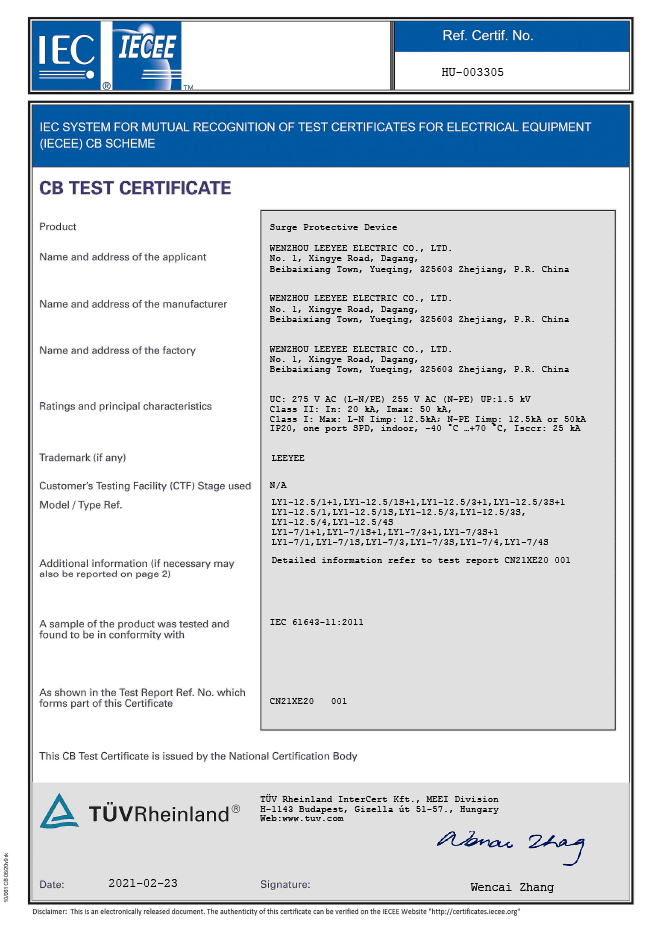

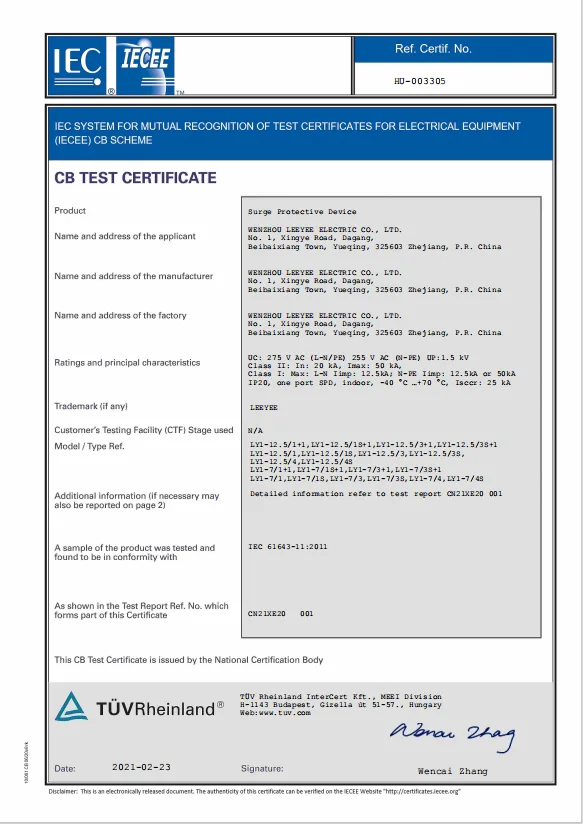

CB certificate for selected LY1-12.5 and LY1-7 Type 1+2 AC SPD models under IEC 61643-11.
Note: Certificate previews are provided for quick buyer review. Click “Open PDF” to view the available certificate copy. Full test reports or latest valid versions can be requested after exact model confirmation.
Pour éviter d'envoyer le mauvais document, LEEYEE peut faire correspondre les certificats avec votre modèle exact, tension, configuration de pôles et application.
Fournir le modèle de produit, la tension nominale, le nombre de pôles et l'application prévue.
Nous vérifions si la portée du certificat correspond au modèle ou à la série de produits.
Obtenez le certificat disponible, le rapport ou le document de conformité pour la révision de l'acheteur.
Request model recommendation if your project requires a different protection level.
No. Certificate scope depends on product series, voltage rating, protection type, pole configuration and application. Always confirm the exact model before using a certificate for project approval.
No. PV 600V, 1000V and 1500V DC SPD models should be checked against their own certificate scope. A lower-voltage certificate should not be used to approve a higher-voltage PV SPD model.
Yes. LEEYEE can provide available certificate copies or test reports for buyer review after the exact model and certificate scope are confirmed.
Please send product model, rated voltage, pole configuration, protection type, application, destination market and required standard, so the correct document can be matched faster.
Certificate and marking requirements for OEM or private-label supply must be confirmed before production. Available options depend on the product series, certificate scope and requested branding method.
Send your model number, voltage rating and application. LEEYEE will help confirm the available certificate, report or product document for your purchasing and approval process.
