Industrial standby generators and diesel generator systems require a coordinated surge protection strategy. The protection design should consider the complete backup power path, including utility supply, automatic transfer switch (ATS), generator output, main distribution board, and electronic control circuits.
Quick Answer
Yes. Industrial standby generator systems usually require surge protection consideration. A complete SPD strategy normally includes:
- Generator output protection for the generator supply circuit.
- ATS-related protection for transfer equipment and switching conditions.
- Main distribution board protection for downstream loads.
- Control and communication circuit protection for sensitive electronics.
The correct SPD Type, voltage rating, pole configuration, and connection method must be confirmed according to the generator system voltage, grounding arrangement, neutral connection, short-circuit conditions, and project requirements.
LEEYEE is a specialized surge protection and low-voltage protection supplier. CNSPD is LEEYEE’s surge-protection-focused platform for global technical buyers. This guide is designed for generator manufacturers, ATS cabinet suppliers, electrical contractors, and industrial project buyers.
Table of Contents
Why Do Industrial Generators Need Surge Protection?
A generator system can experience transient overvoltages from several sources. These events are not limited to external lightning surges. Switching operations, load changes, transfer actions, and long cable connections can also create electrical disturbances.
Modern generator systems also contain sensitive electronic equipment, including controllers, monitoring interfaces, communication modules, and automation devices. These components may require additional protection because they are more sensitive than traditional electrical loads.
For engineering selection, surge protection should be considered as part of the complete backup power system rather than only as a generator accessory.
Generator Surge Protection Architecture for Standby Power Systems
The protection strategy normally follows the electrical path of the system. The objective is to control surge energy, reduce voltage stress on equipment, and provide suitable protection coordination between different parts of the installation.

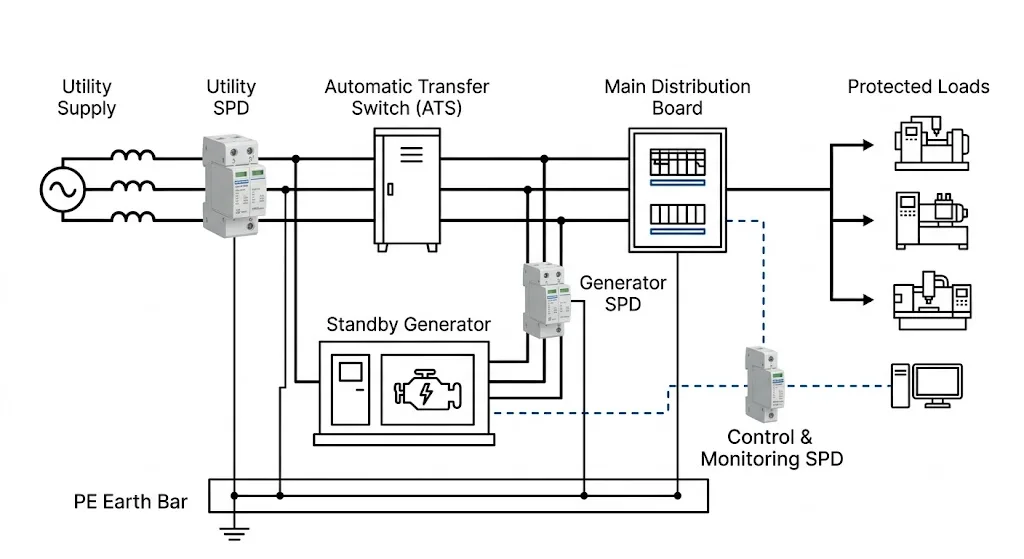

Typical generator surge protection architecture. The final arrangement depends on the project electrical design and grounding system.
Where Should SPD Be Installed in a Generator System?

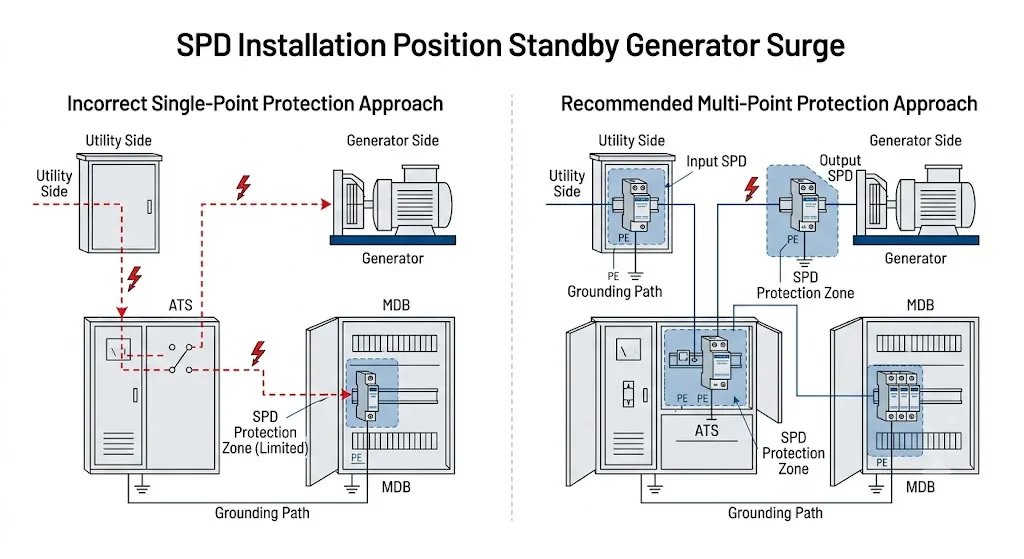

SPD installation location depends on the equipment that needs protection and the possible surge entry points. One SPD location may not provide complete protection for an entire standby power system.
| Location | Protection Purpose | Confirmation Required |
|---|---|---|
| Utility incoming side | Protect incoming supply and switching equipment | Service arrangement and grounding system |
| Generator output side | Protect generator output circuit | Generator voltage, phases, neutral arrangement |
| ATS cabinet | Protect transfer equipment and switching interface | ATS structure and installation method |
| Main distribution board | Protect connected loads | Load sensitivity and coordination requirements |
Generator SPD Type Selection: Type 1, Type 2 and Signal Protection
SPD selection depends on installation conditions, exposure level, and the protection objective. The SPD Type should not be selected only because the equipment is a generator.
| Application Area | Typical SPD Consideration | Buyer Confirmation |
|---|---|---|
| Generator main power connection | Type 1 or Type 1+2 may be considered depending on installation conditions | Confirm external lightning protection and system requirements |
| ATS and distribution panels | Type 2 protection may be considered for downstream protection | Confirm coordination and installation location |
| Generator controller and communication circuits | Dedicated signal SPD may be required | Confirm interface type and wiring method |
According to IEC 61643-11, SPD selection and testing requirements depend on the intended application and device characteristics. The final configuration must be verified for the specific installation [1].
Should SPD Be Installed Before or After ATS?
There is no universal answer that applies to every generator project. The correct configuration depends on whether the objective is protecting the incoming supply, generator output, transfer equipment, or downstream loads.
ATS protection decisions should consider both normal utility operation and emergency generator operation.
For project confirmation, engineers should review:
- Utility and generator supply paths.
- ATS switching arrangement.
- Grounding and bonding method.
- Required protection level for connected equipment.
Generator Side and Utility Side SPD Coordination
A standby generator system operates in different states:
- Utility power supplying the load.
- Generator supplying emergency power.
- ATS transferring between power sources.
The SPD strategy should consider all operating conditions. A protection design that only considers one power source may leave another part of the system exposed.
Protection for Generator Control, Monitoring and Communication Circuits
Industrial generator systems often include electronic controllers and remote monitoring functions. These circuits require separate evaluation because AC power protection does not automatically protect signal interfaces.
- Generator controller communication ports.
- RS485 or field communication interfaces.
- Remote monitoring connections.
- Sensor and auxiliary control wiring.
Grounding, Neutral Connection and SPD Selection
Grounding arrangement is one of the key factors affecting SPD selection. TN-S, TN-C-S, TT, IT and other system arrangements may require different protection modes.
The generator neutral connection and ATS neutral switching method must be confirmed before finalizing the SPD configuration.
UPS, Generator and SPD Coordination
Critical facilities often combine generators with UPS systems. The generator, ATS, UPS input, and sensitive loads should be considered as one coordinated power protection chain.
The project review should confirm:
- Power source sequence.
- Transfer arrangement.
- UPS input requirements.
- Equipment sensitivity.
Typical Industrial Generator Applications
| Application | Main Protection Concern |
|---|---|
| Data center backup power | Generator, ATS, UPS coordination and sensitive electronics |
| Hospital emergency power | Reliable transfer operation and critical load protection |
| Industrial factory backup system | Motor loads, control cabinets and automation equipment |
Before Ordering Generator SPD: OEM and Project Checklist
- System voltage and frequency.
- Phase configuration.
- Generator output arrangement.
- Grounding system.
- Neutral connection method.
- ATS configuration.
- SPD installation position.
- SPD Type and protection mode.
- Short-circuit information.
- Required standards and certificates.
- OEM label, packaging, and documentation requirements.

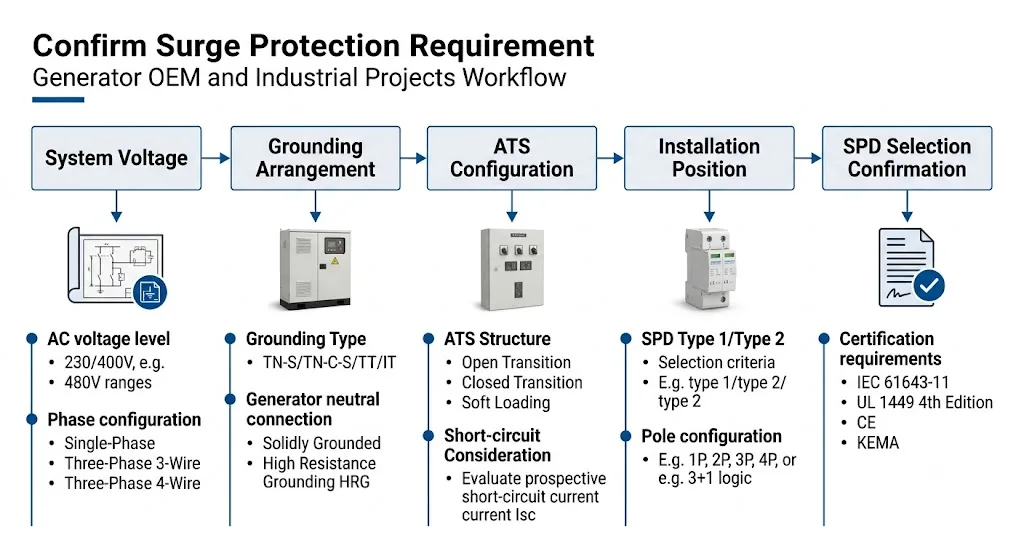

OEM and project confirmation workflow for generator manufacturers, ATS suppliers and electrical system integrators.
Need help selecting SPD protection for a generator or ATS application? Share your system parameters and project requirements for technical review.
Request Model RecommendationFAQ
Does a standby generator need an SPD?
Many industrial standby generator systems require surge protection consideration. The final requirement depends on the installation design, equipment sensitivity, and applicable project standards.
Can one SPD protect both utility and generator power?
Not always. Utility and generator power paths may create different protection requirements. The complete system architecture should be reviewed before selection.
What SPD Type is used for generator systems?
The appropriate SPD Type depends on installation conditions, protection objectives, and applicable standards. Type 1, Type 1+2, or Type 2 solutions may be considered depending on the project.
Does generator neutral grounding affect SPD selection?
Yes. Neutral connection and grounding arrangement are important factors that must be confirmed before selecting the SPD connection method.
