Protezione da sovratensioni AC di tipo compatto 1+2 per sistemi 3P+N
LY1-C40M/3(S)+1 is a compact pluggable Type 1+2 AC surge protective device for three-phase plus neutral systems. It provides coordinated L-N and N-PE surge protection, helping limit lightning impulses and transient overvoltage while reducing the DIN-rail space required inside distribution and control panels.
Compact 3P+N configuration for three-phase four-wire systems
Capacità di scarica degli impulsi 7kA L-N e 25kA N-PE
Corrente di scarica nominale 20kA e massima 40kA
Moduli pluggabili con indicazione visiva e contatto remoto opzionale
Applicazioni Idonee
LY1-C40M/3(S)+1 is suitable for compact three-phase plus neutral AC systems requiring coordinated Type 1+2 surge protection between L-N and N-PE.
Quadri di Distribuzione
For incoming surge protection in compact three-phase plus neutral distribution panels.
Pannelli di controllo industriale
Suitable for machinery controls, automation cabinets, HVAC systems, and industrial equipment.
Edifici commerciali
Helps protect three-phase building power systems against switching surges and lightning-induced overvoltage.
Pannelli di uscita AC solari
For three-phase solar inverter AC output panels when the selected voltage version matches the installation.
FAQ
Common questions about LY1-C40M/3(S)+1 compact 3P+N pluggable Type 1+2 AC surge protective device selection.
What is LY1-C40M/3(S)+1 used for?
It is used for compact Type 1+2 surge protection in three-phase plus neutral AC systems, with coordinated protection between L-N and N-PE.
What does 3P+N mean?

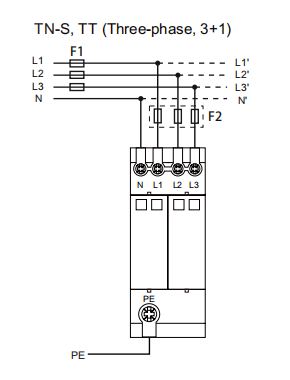

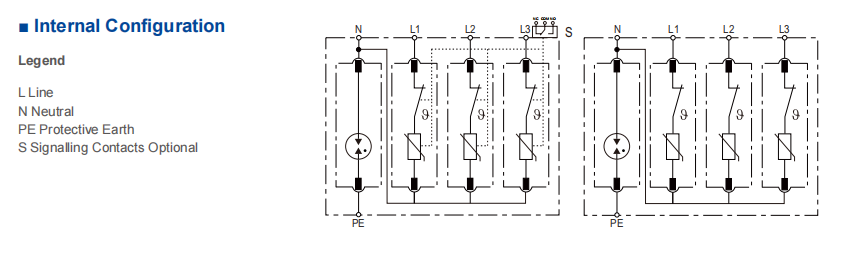

3P+N means the SPD is designed for three phase conductors plus neutral, with L-N protection paths and a coordinated N-PE protection path.
Quali valutazioni di sovratensione fornisce questo SPD?
It provides 20kA nominal discharge current and 40kA maximum discharge current. Its impulse discharge current is 7kA on the L-N paths and 25kA on the N-PE path.
Quali opzioni di tensione sono disponibili?
Le opzioni di tensione continua massima operativa L-N disponibili sono 75V, 150V, 275V e 320V CA. La tensione continua operativa N-PE è di 255V.
Qual è il vantaggio del design compatto e modulari?

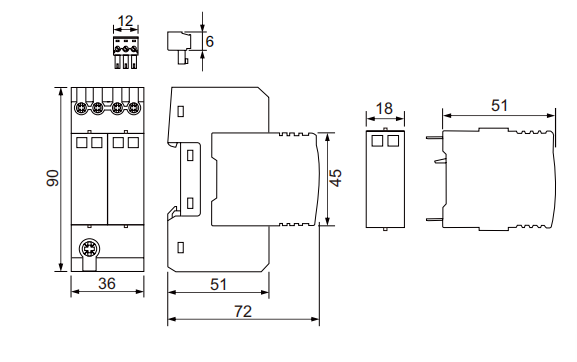

The compact structure reduces DIN-rail space, while the pluggable cartridges simplify inspection and replacement without removing the complete wired base.
Cosa dovrebbe essere confermato prima di ordinare?
Confirm the L-N system voltage, 3P+N circuit arrangement, N-PE protection requirement, 63A maximum backup fuse, conductor size, DIN-rail space, and remote-contact requirement.
