    Item No.: LY1-B25/1(S)

    LY1-B25/1(S)MONOBLOCK SINGLE-POLE SPD

    Description：

    Classl·Classll·Type 1 .Type 2
    Location of Use: Main Distribution Boards
    Network Systems: TN-S, TN-C, TT
    Mode of Protection: L-PE/N-PE
    Surge Ratings: Limp= 25 kA (10/350 μs)
    Ln= 25 kA (8 /20 μs)
    lEC/EN Category: Class l+ll /Type 1+2
    Protective Elements: High Energy MOV
    Housing: Monoblock Design
    Compliance: lEC 61643-11:2011
    EN 61643-11:2012

    Quote Now

      As a professional AC surge protective device manufacturer, we supply high-quality 100kA 1 pole SPD designed for industrial and residential power systems. This model uses advanced graphite arc gap and MOV ZnO materials, providing superior lightning and surge protection performance.
      Our SPD is built with PVC/PA66/PBT flame-retardant housing and fully complies with IEC 61643-11:2011 / EN 61643-11:2022 standards. Certified with CE and TUV, it ensures reliability and durability even under harsh environments.

      As a factory-based OEM/ODM supplier, we offer wholesale, bulk buy, and in bulk orders for distributors worldwide. Choose our 100kA 1 pole AC surge protective device to enhance the stability and safety of your power distribution systems.

      Applicable scenarios / Application industries

      The product supports 35mm DIN rail installation, ideal for AC power systems, solar inverter panels, and combiner boxes.



      ■ Technical Data
      IEC Electrical 150 275 320 385 440
      Nominal AC Voltage (50/60Hz) Uo/ Un 120 V 230 V 230 V 230 V 400 V
      Maximum Continuous Operating Voltage (AC) Uc 150 V 275V 320 V 385 V 440 V
      Nominal Discharge Current (8/20 μs) In 25kA
      Maximum Discharge Current (8/20 μs) Imax 100kA
      Impulse Discharge Current (10/350 μs) Iimp 25kA
      Specific Energy W/R 156 kJ / Ω
      Charge Q 12.5 As
      Voltage Protection Level Up 1 kV 1.5 kV 1.6 kV 1.8 kV 2 kV
      Response Time tA < 25 ns
      Back-Up Fuse (max) 315 A gL / gG
      Short-Circuit Current Rating (AC) ISCCR 50 kA
      TOV Withstand 5s UT 180V 335V 335V 335V 580V
      TOV 120min UT 230V 440V 440V 440V 765V
      Number of Ports 1
      Mechanical & Environmental
      Operating Temperature Range Ta -40ºF to +158ºF [-40ºC to +70ºC]
      Permissible Operating Humidity RH 5%…95%
      Atmospheric pressure and altitude 80k Pa … 106k Pa / -500 m…… 2000 m
      Terminal Screw Torque Mmax 39.9 Ibf·in[4.5 Nm]
      Conductor Cross Section (max) 2 AWG (Solid, Stranded) / 4 AWG (Flexible)
      35 mm² (Solid, Stranded) / 25 mm²(Flexible)
      Mounting 35 mm DIN Rail, EN 60715
      Degree of Protection IP 20 (built-in)
      Housing Material Thermoplastic: Extinguishing Degree UL 94 V-0
      Thermal Protection Yes
      Operating State / Fault Indication Green ok / Red defect
      Remote Contacts (RC)
      RC Switching Capacity
      RC Conductor Cross Section (max)      		 Optional
      AC: 250V / 0.5 A; DC: 250V / 0.1 A;125V / 0.2 A;75V / 0.5 A
      16 AWG (Solid) / 1.5 mm²(Solid)

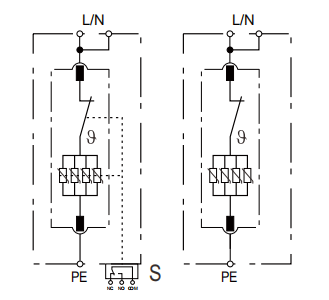

      ■ Internal Configuration

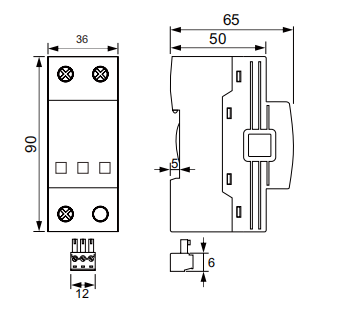

      ■ Dimensions & Packaging

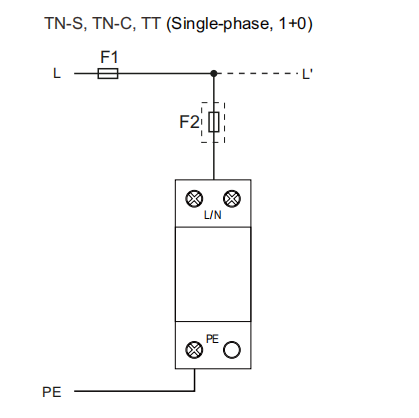

      ■ Connection Diagram
