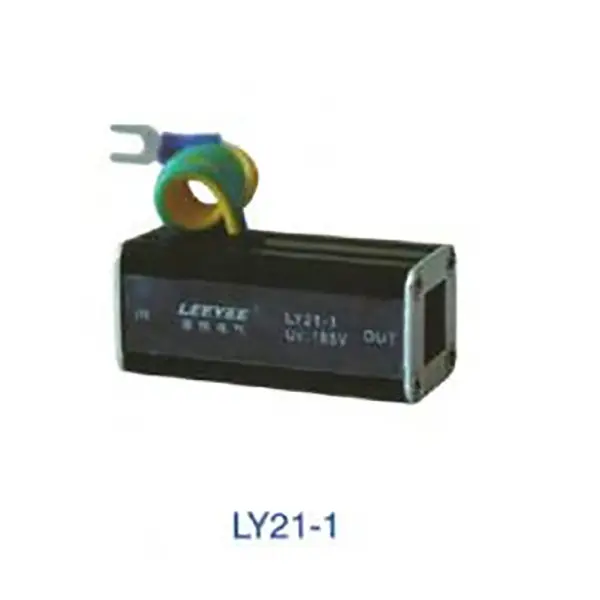

LY21- 1 series signal lightning protective device is connected in series in front of the protected equipment,it is mainly used for overvoltage protection intruded through a variety of audio signal lines into the device,such as SPC exchange, fax equipment,MODEM,emergency phones, relay lines and so on.
Specifications
| Model | LY10 | ||
| Rated operating voltage | 45V | 130V | 170V |
| Max continuous operating voltage | 60V | 150V | 185V |
| Rated load current | 500mA | ||
| Flow withstand capacity | 5KV&2.5KA | ||
| Clamping voltage x- ×(1.2/50) | 160V/240V/300V | ||
| Transmission rate | 2Mbps | ||
| Insertion loss | ≤0.2dB | ||
| lnterface type | RJ11 | ||
| Protection grade | IP20 | ||
Outline Dimensions
