- PM installation
- With alloy contacts, electrical special silver long life and high reliability.
- Small size, space-saving installation.
- Construct a protective finger to make the operation safe.
- With a variety of installation, ease of application of various purpose(panel mount, rail mount, sealed switch box type).
- IP66 degree of protection.
- Five years warranty.
Item No.: LYAS69

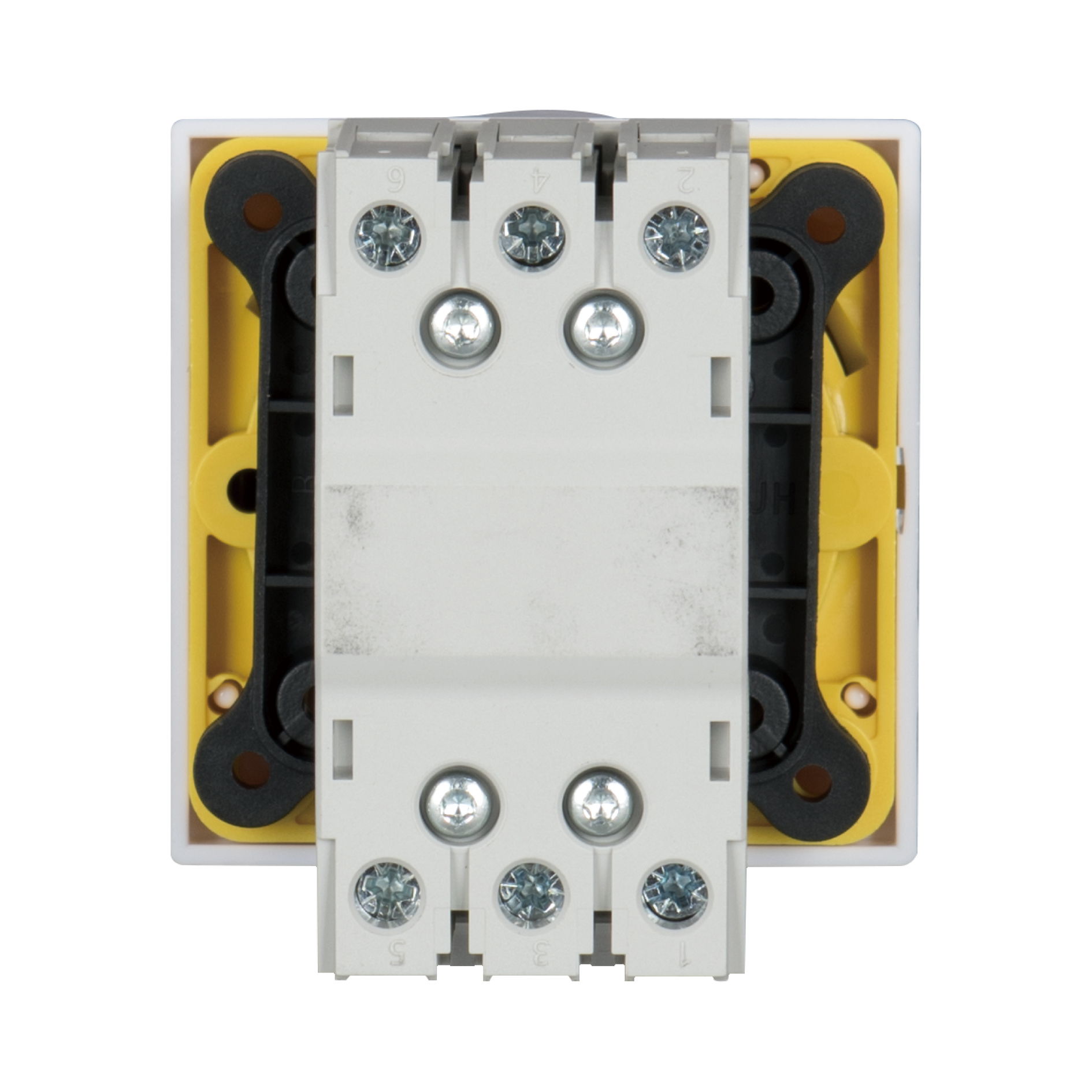

LYAS69 SERIES AC ISOLATOR 690V 80A
Description：
LYAS69 isolation switch is widely used in industrial control machinery and various electrical appliances, and can effectively solve the problems of emergency disconnection,safety disconnection, machine control, motor control and soon.Quote Now
| Current | 20A | 32A | 40A | 63A | 80A | |
| Type | LYAS69-LK20-4RY | LYAS69-LK32-4RY | LYAS69-LK40-4RY | LYAS69-LK63-3RY | LYAS69-LK80-3RY | |
| Rated carry current | 20A | 32A | 40A | 63A | 80A | |
| Rated operating current AC-23A |
16A | 25A | 32A | 45A | 45A | |
| Rated operating current AC-3 |
12A | 23A | 30A | 37A | 37A | |
| Rated power control AC-23A |
240V | 4KW | 7.5KW | 9KW | 15KW | 15KW |
| 440V | 7.5KW | 12.5KW | 16KW | 22KW | 22KW | |
| Rated power control AC-3 |
240V | 3KW | 5.5KW | 7.5KW | 11KW | 11KW |
| 440V | 5.5KW | 11KW | 15KW | 18.5KW | 18.5KW | |
| UL-CSA Motor load |
240V | 3KW | 5KW | 5KW | 10KW | 10KW |
| 440V | 7.5KW | 10KW | 10KW | 20KW | 20KW | |
| Rated short-time withstand current |
250A | 400A | 500A | 600A | 850A | |
| Cable | 0.5-10MM² | 1-16MM² | ||||
| Screw torque | 0.8-1.7N ·m | 1.5-2N ·m | ||||
| Rated insulation voltage | 690V | |||||

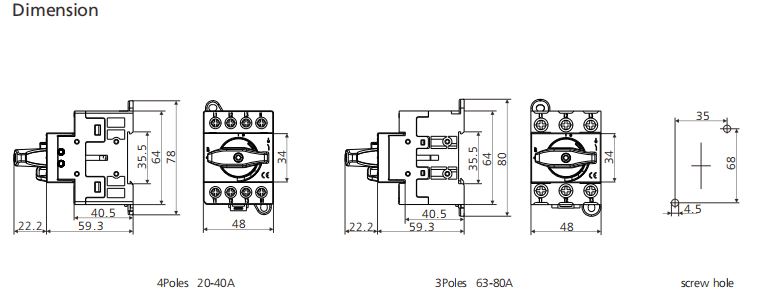

Dimension
mounting hole door lock hole There are 3 installation methods in the picture: A: 4 holes, center distance 48 (without gasket) B: 4 holes, center distance 36 (4 holes gasket)
