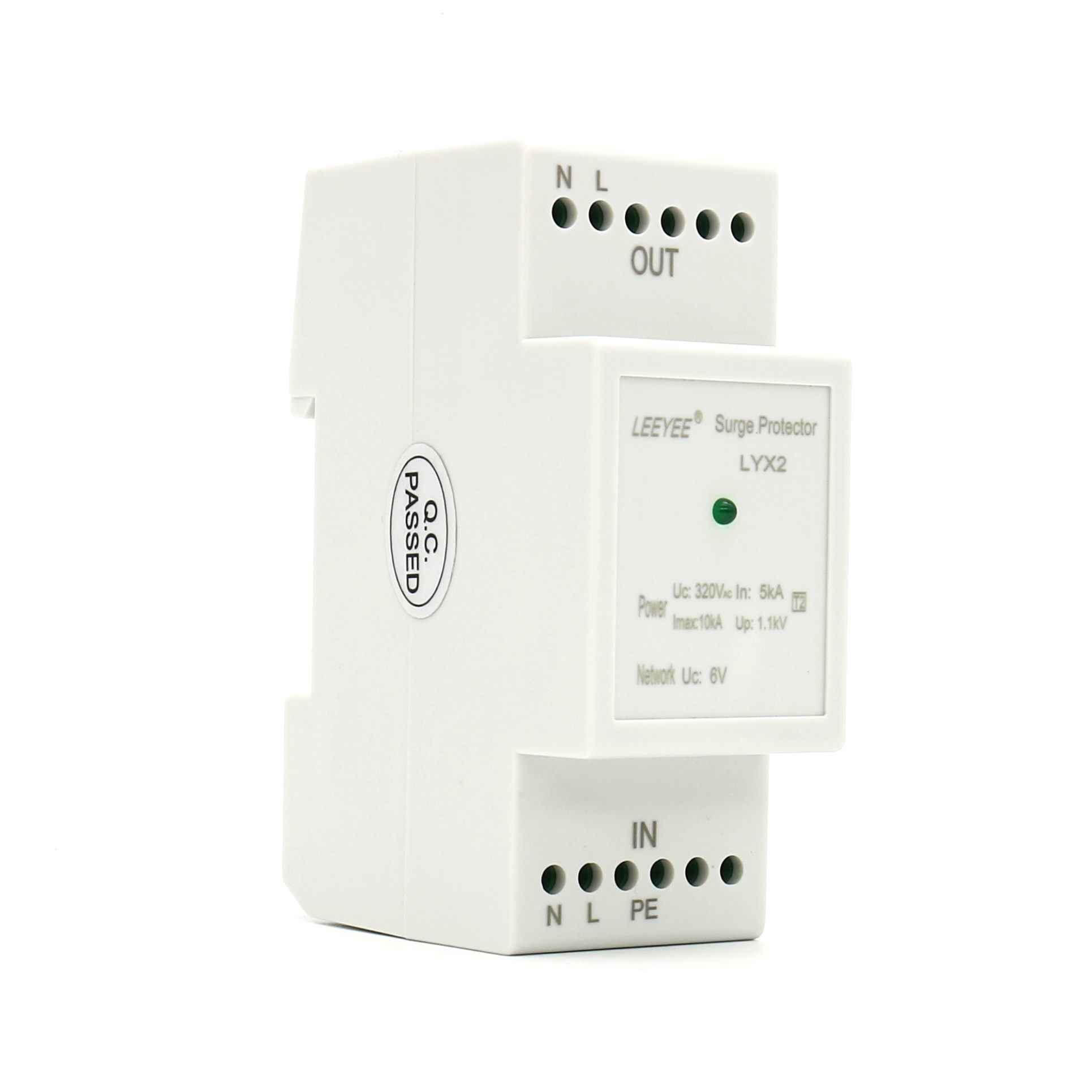

Integrated Surge Protection for CCTV Power, Control and Video Lines
The LYX series combines power, PTZ control, analog video, or network-line protection in one compact device. Installed in series close to the protected camera, it helps prevent lightning-induced and switching transient overvoltage from reaching CCTV cameras, control equipment, recorders, and monitoring systems.
Two-in-one and three-in-one CCTV protection options
Protects power, PTZ control, video, and network circuits
100Mbps transmission with insertion loss ≤0.2dB
Compact series-connected design for indoor and outdoor monitoring systems
Suitable Applications
The LYX series is suitable for surveillance systems that require coordinated protection of camera power, control, video, and network circuits.
PTZ CCTV Cameras
Protects camera power, PTZ control, and video circuits in pan-tilt-zoom surveillance systems.
City Surveillance
Suitable for roadside cameras, urban monitoring points, public security systems, and traffic surveillance.
Building Security Systems
Protects indoor and outdoor cameras installed in offices, campuses, hospitals, and public buildings.
Communication Sites
Suitable for camera systems at communication stations, towers, remote sites, and equipment compounds.
FAQ
Common questions about LYX two-in-one and three-in-one CCTV camera surge protector selection.
What is the LYX CCTV surge protector used for?
It is installed in series before a surveillance camera to help protect its power, PTZ control, analog video, or network signal lines against transient overvoltage.
What is the difference between two-in-one and three-in-one protection?
A two-in-one model normally protects two camera circuits, such as power plus video or power plus network. A three-in-one model adds a third protection path, commonly for PTZ control. The exact circuit combination must be confirmed from the selected submodel wiring diagram.
Which camera power voltages are available?
The listed power-section options are 12VAC, 24VAC, and 220VAC. Select the version that matches the normal supply voltage and wiring arrangement of the protected camera.
Can LYX protect PTZ control lines?
Yes. The control section is listed for a 12V circuit with 15V maximum continuous voltage, 500mA load current, and up to 100Mbps transmission.
Where should the LYX protector be installed?
Install it close to the protected camera or surveillance equipment, with the incoming and protected sides connected according to the wiring diagram. Keep grounding conductors short and direct.
What should be confirmed before ordering?
Confirm whether two-in-one or three-in-one protection is required, the camera power voltage, video or network interface, PTZ control voltage, connector type, indoor or outdoor installation, grounding method, and selected submodel.
