Reliable Type 2 Surge Protection for 600V DC Systems
LY1-C40PV/3(S) 600V is a three-pole pluggable Type 2 DC surge protective device designed for photovoltaic combiner boxes, inverter DC inputs, telecom power cabinets, energy-storage systems, and industrial DC distribution panels. Its high-energy MOV modules provide fast surge limitation with 20kA nominal discharge current and 40kA maximum discharge current.

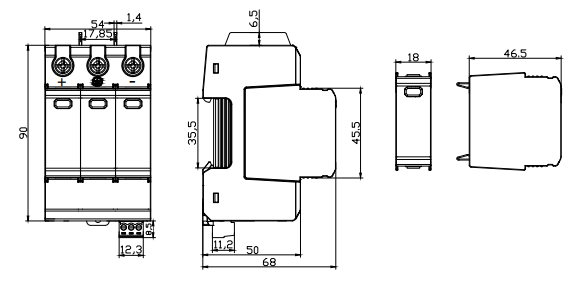

Class II / Type 2 protection for systems up to 600V DC
Three-pole pluggable design for multi-line DC circuits
20kA nominal and 40kA maximum discharge current

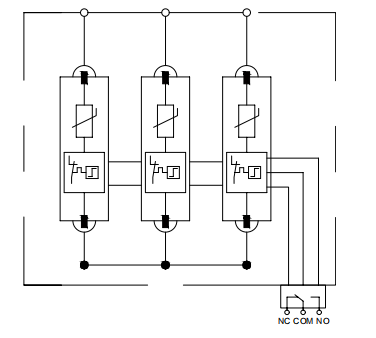

Replaceable modules with visual indication and optional remote contact
Suitable Applications
LY1-C40PV/3(S) 600V is suitable for photovoltaic and industrial DC systems requiring three-pole Type 2 surge protection.
Scatole combinatore FV
Protects photovoltaic strings and 600V DC combiner-box circuits against transient overvoltage.
PV Inverter DC Inputs
Suitable for protecting compatible string, hybrid, and commercial solar inverter DC inputs.
Telecom DC Cabinets
Helps protect telecom power racks, base-station DC cabinets, and communication power equipment.
Energy Storage Systems
Suitable for compatible battery cabinets and energy-storage DC distribution circuits up to 600V DC.
FAQ
Common questions about LY1-C40PV/3(S) 600V three-pole pluggable Type 2 DC surge protective device selection.
What is LY1-C40PV/3(S) 600V used for?
It is designed to limit lightning-induced and switching transient overvoltage in photovoltaic, telecom, energy-storage, and industrial DC systems operating up to 600V DC.
Is LY1-C40PV/3(S) 600V a Type 2 DC SPD?
Yes. The product is classified as Class II / Type 2 according to the current product specification and is intended for downstream DC surge protection.

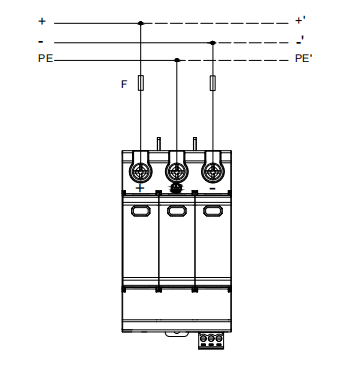

What does the three-pole configuration protect?
The three-pole configuration is intended for multi-line DC systems requiring coordinated protection of positive, negative, and an additional monitored or grounded protection path. Installation must follow the supplied wiring diagram.
What discharge-current ratings does it provide?
It provides 20kA nominal discharge current In and 40kA maximum discharge current Imax, both based on an 8/20μs current waveform.
Can the protection modules be replaced separately?
Yes. Its pluggable design allows individual protection modules to be inspected or replaced without removing the permanently wired base.
What should be confirmed before ordering?
Confirm the maximum system voltage, three-pole wiring arrangement, grounding system, required voltage protection level, backup-fuse coordination, conductor size, installation location, and optional remote-contact requirement.
