Classl·Class II·Type 1·Type 2
Location of Use: Main Distribution Boards
Network Systems: TN-S
Mode of Protection: L-PE /L’-PE, N-PE / N’-PE
Surge Ratings: limp= 25 kA (10/350 μs)
ln = 25 kA (8 /20 μs)
IEC/EN Category: Class 1+11 / Type 1+2
Protective Elements:High Energy MOV
Housing: Monoblock Design
Compliance: IEC 61643-11:2011
EN 61643-11:2012
Technical Data

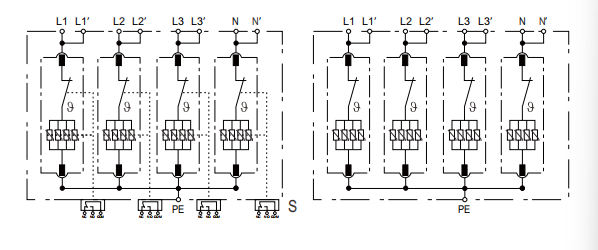

Internal Configuration

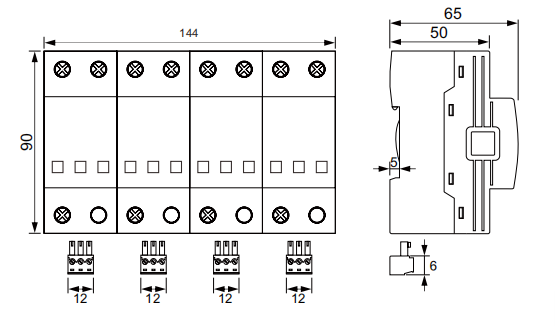

Dimensions & Packaging

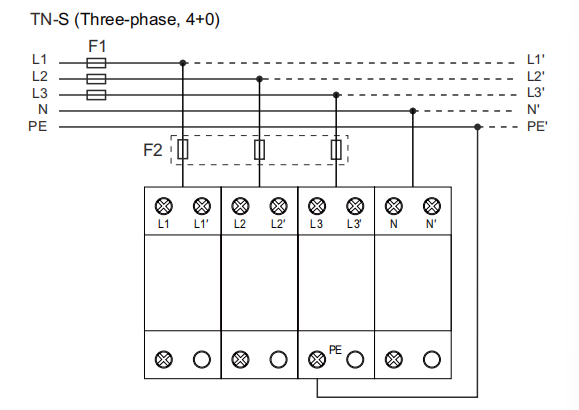

Connection Diagram
